All the Angular2 based Alfresco web components can be found in the following GitHub project:https://github.com/Alfresco/alfresco-ng2-components

Each component, such as the datatable, has its own sample that demonstrates the use of it.

Datatable

Description: The datatable component can be used to display arbitrary data in a table:

Detailed component information: http://devproducts.alfresco.com/components/ng2-alfresco-datatable

Component source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-datatabl...

Sample/Demo source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-datatabl...

How to run sample (note. does not require the Alfresco server to be running):

1. Git clone the https://github.com/Alfresco/alfresco-ng2-components project.
2. Cd into the ng2-alfresco-datatable/demo directory
3. npm install
4. npm start

Alternative way to build and start demo (step 3-4) if above instructions does not work (sudo might be needed on linux):

1. npm install (get all the packages)
2. tsc (compile the demo)
3. npm run server (start the server)

Document List

Description: The document list component can be used to display content node metadata in a list. Each row in the list has a number of columns representing a content node’s metadata:

Detailed component information: http://devproducts.alfresco.com/components/ng2-alfresco-documentlist

Component source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-document...

Sample/Demo source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-document...

How to run sample:

1. Make sure you have an Alfresco Platform 5.2.a or newer running
2. Git clone the https://github.com/Alfresco/alfresco-ng2-components project.
3. Cd into the ng2-alfresco-documentlist/demo directory
4. Update Alfresco Host and Login Credentials: in the demo/src/main.ts file (By default it is 127.0.0.1 and admin/admin - can also be set when running the demo)
5. npm install
6. npm start

Alternative way to build and start demo (step 5-6) if above instructions does not work (sudo might be needed on linux):

1. npm install (get all the packages)
2. tsc (compile the demo)
3. npm run server (start the server)

Login

Description: The login component is used to provide an Alfresco Platform login dialog:

Detailed component information: http://devproducts.alfresco.com/components/ng2-alfresco-login

Component source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-login

Sample/Demo source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-login/de...

How to run sample:

1. Make sure you have an Alfresco Platform 5.2.a or newer running
2. Git clone the https://github.com/Alfresco/alfresco-ng2-components project.
3. Cd into the ng2-alfresco-login/demo directory
4. Specify Alfresco Host that you want to authenticate with: in the demo/src/main.ts file (also possible to set when running the demo)
5. npm install
6. npm start

Alternative way to build and start demo (step 5-6) if above instructions does not work (sudo might be needed on linux):

1. npm install (get all the packages)
2. tsc (compile the demo)
3. npm run server (start the server)

Search

Description: The search component is actually two components: Search Control, which displays a search box where the user can enter a query, and Search Result, which displays the search result from that query.

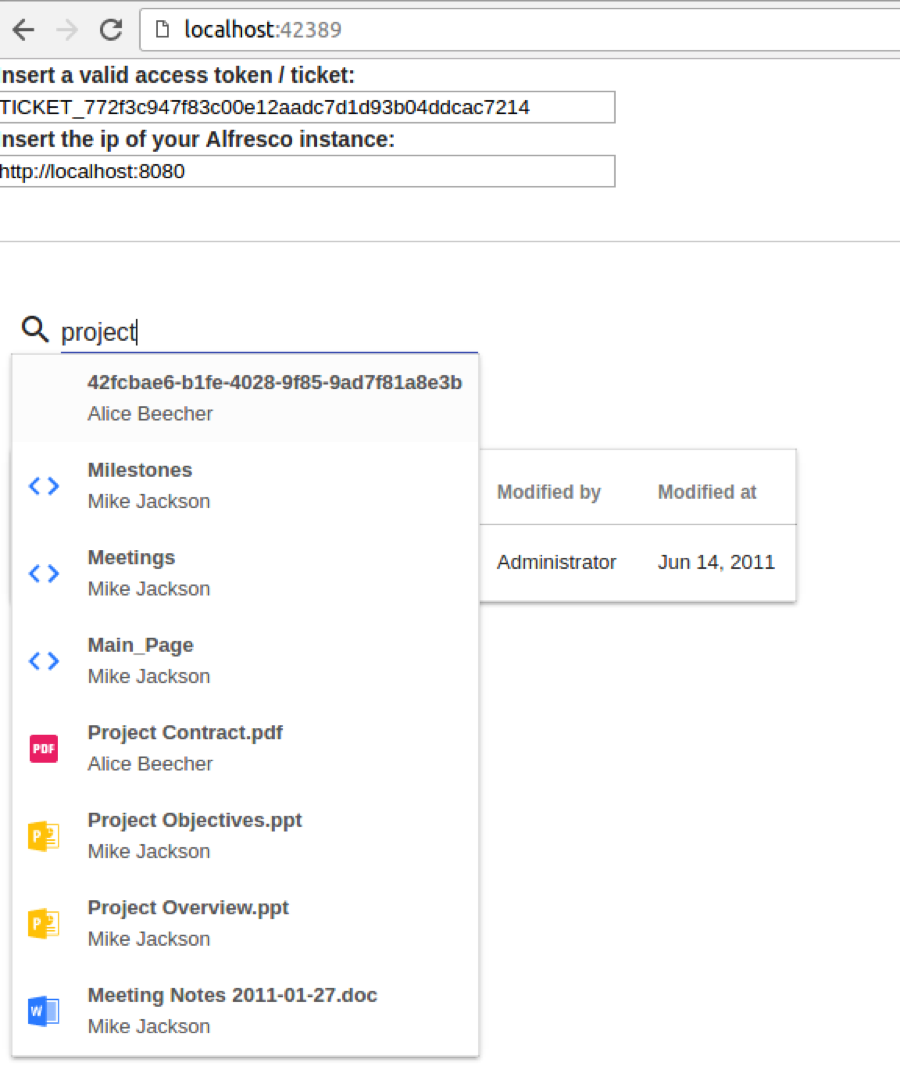

Instant search via Search Control:

Search Result screen:

Detailed component information: http://devproducts.alfresco.com/components/ng2-alfresco-search

Component source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-search

Sample/Demo source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-search/d...

How to run sample:

1. Make sure you have an Alfresco Platform 5.2.a or newer running
2. Git clone the https://github.com/Alfresco/alfresco-ng2-components project.
3. Cd into the ng2-alfresco-search/demo directory
4. Update Alfresco Host and Login Credentials: in the demo/src/main.ts file
5. npm install
6. npm start

Alternative way to build and start demo (step 5-6) if above instructions does not work (sudo might be needed on linux):

1. npm install (get all the packages)
2. tsc (compile the demo)
3. npm run server (start the server)

Upload

Description: The upload component can be used to provide a button for a file upload dialog. It actually consist of two components: Upload Button and Drag and Drop, depending on what the user prefers and what you want to provide:

Detailed component information: http://devproducts.alfresco.com/components/ng2-alfresco-upload

Component source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-upload

Sample/Demo source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-upload/d...

How to run sample:

1. Make sure you have an Alfresco Platform 5.2.a or newer running
2. Git clone the https://github.com/Alfresco/alfresco-ng2-components project.
3. Cd into the ng2-alfresco-upload/demo directory
4. Update Alfresco Host and Login Credentials: in the demo/src/main.ts file
5. npm install
6. npm start

Alternative way to build and start demo (step 5-6) if above instructions does not work (sudo might be needed on linux):

1. npm install (get all the packages)
2. tsc (compile the demo)
3. npm run server (start the server)

Viewer

Description: The viewer component provides file previews:

Detailed component information: http://devproducts.alfresco.com/components/ng2-alfresco-viewer

Component source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-viewer

Sample/Demo source code: https://github.com/Alfresco/alfresco-ng2-components/tree/master/ng2-components/ng2-alfresco-viewer/d...

How to run sample (note. does not require the Alfresco server to be running):

1. Git clone the https://github.com/Alfresco/alfresco-ng2-components project.
2. Cd into the ng2-alfresco-viewer/demo directory
3. npm install
4. npm start

Alternative way to build and start demo (step 3-4) if above instructions does not work (sudo might be needed on linux):

1. npm install (get all the packages)
2. tsc (compile the demo)
3. npm run server (start the server)
